Motor Type
Equipped with a DC brushless motor featuring power-on self-diagnosis, low failure rate, and long service life.
-
Passage Direction Indicator Light
A circular LED flow-light indicator is integrated into the top cover.
In standby mode, the ring displays a steady golden glow (or a custom color).
After successful authentication, the lighting flows in the direction of gate opening until the barrier fully closes.
-
Lane Status Indicator
Red/green LED indicators on the front pillar clearly show current lane availability.
-
Audio-Visual Alarm
Unauthorized access triggers flashing lights and audible alarms, which remain active until the intrusion is resolved.
-

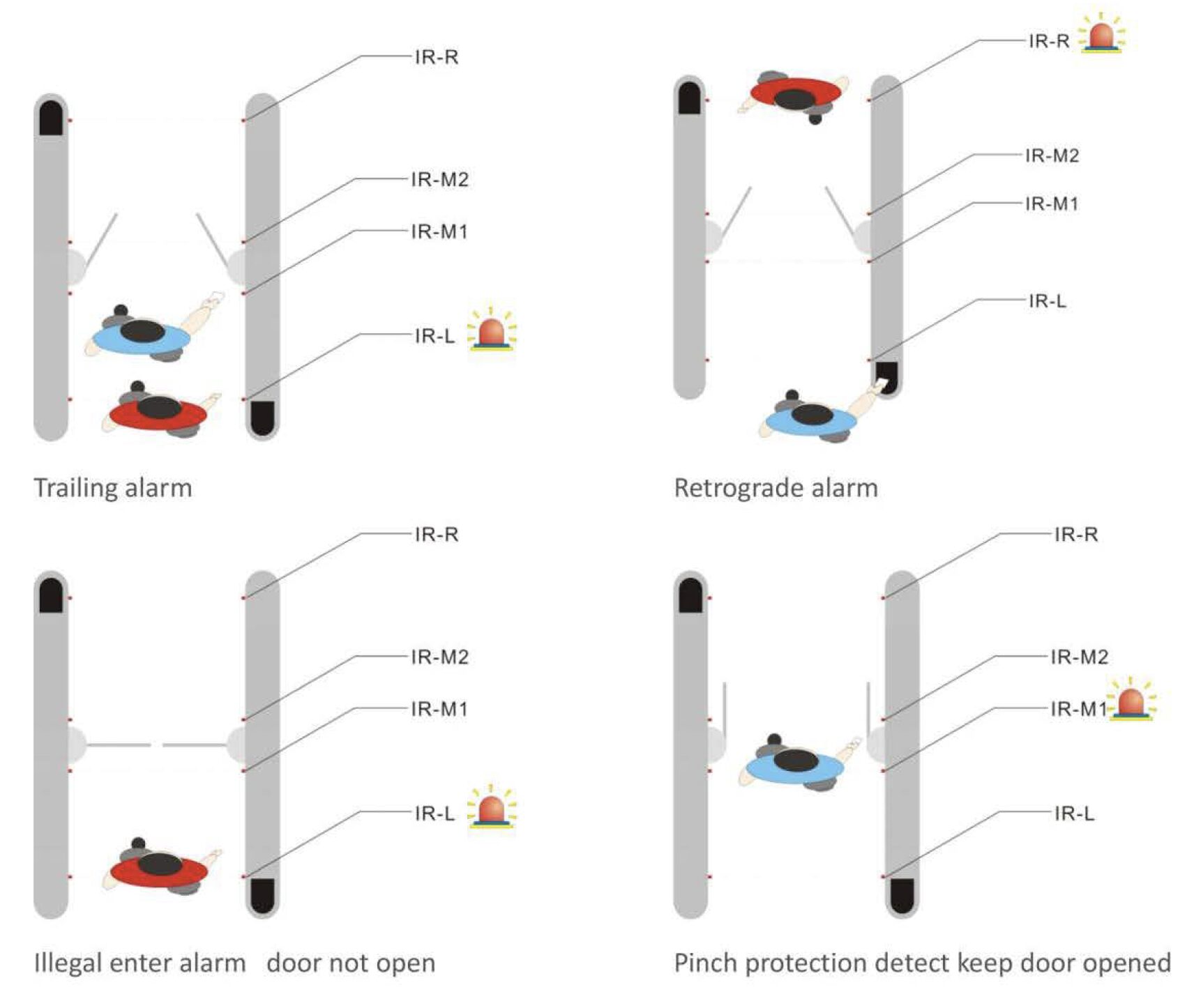

Anti-Pinch Protection
Eight pairs of infrared sensors provide comprehensive anti-pinch safety.
-
Obstacle Rebound Function
During barrier closure, the motor stops instantly when an obstacle is detected.
If the barrier closes without an IR trigger but encounters resistance, it automatically reopens.
-
Anti-Tailgating
Advanced detection prevents unauthorized users from following authorized individuals. Any tailgating attempt triggers an alarm.
-
Passage Memory Function
When multiple users authenticate consecutively, the system records the number of valid passes and closes only after all users have exited—enabling fast, continuous throughput.
-
LCD Display with Chinese/English Menu
The controller features a bilingual LCD menu for quick on-site configuration.
-
Auto-Reset Permission
If the user fails to pass within the configured timeout after gate opening, the system automatically cancels access permission.
-
Fail-Safe (Power-Off Free Passage)
During a power outage, the barriers automatically open to ensure safe and unobstructed evacuation.
-
Impact-Resistant Brake Locking
Without a valid open signal, forced intrusion activates the clutch and brake-locking mechanism.
The arms lock after deviating beyond a preset angle, then automatically reset while triggering an alarm—reducing mechanical damage and extending motor lifespan.
-
Customizable Voice Prompts
Supports multiple voice prompts, allowing tailored announcements based on application needs.
-
Multiple Operation Modes
Supports bi-directional or single-direction control, with adjustable opening/closing speeds based on passenger flow.
-
People Counting
Provides independent counting for entry and exit directions.
-
Passage Inhibit Input
Allows temporary access restriction during special periods, even if the access controller sends an open signal.
-
Fire Alarm Integration
Upon receiving a fire alarm signal, the barriers automatically open for emergency evacuation.
-
Simplified Master-Slave Structure
The brushless controller uses a 1-to-1 master–slave setup requiring only a 4-core cable, simplifying installation and maintenance.
-
Built-In Leakage Protection
Integrated leakage protection enhances safety; all electrical components operate at 24V for improved reliability.
-
Cloud-Based Remote Management
When paired with a facial recognition terminal, the system supports remote configuration, remote open/close commands, peak-mode settings, and event monitoring—significantly reducing on-site workload.
-
Optional Embedded Camera
Supports a concealed 2MP starlight-grade binocular wide-angle camera for fast face recognition and seamless, aesthetic integration.
-
Optional Wireless Receiver
Compatible with a handheld remote for triggering peak-mode permanent open, single-pass entry, or single-pass exit.
