EV200 ELID-ANPR

Automatic number plate recognition (ANPR) is a technology that uses optical character recognition (OCR) to recognize license plate numbers from captured images of the vehicle license plate. ELID-ANPR is a stand-alone Linux-based ANPR system with superior OCR performance, achieved by deploying state-of-the-art deep neural networks. It is meant to be installed and used at the edge – this eliminates the need for any PC or software installation. ELID-ANPR is equipped with a built in web-server, which allows the user to perform important functions like database management, adjusting settings and software updates through the web interface. It can also be directly managed from ELID’s access control softwares. The system is packaged with a powerful, dedicated IP camera that is specifically designed to be accessed by ELID-ANPR processing unit for obtaining crisp images of license plates.

  • State-of-the-art technology
  • True unconstrained performance
  • Real-time ANPR
  • Easy Installation And Set-up
  • Effortless Integration
  • 24/7 Operation
  • All-weather conditions
  • Evidential image storage

speed  Speed/ Time   convenient Convenient   weather All Weather Conditions



Model No. EV-200
Device platform Linux
Working distance Between 2 metres and 12 metres
License plate detection accuracy >99%
License plate recognition accuracy >95%
OCR algorithm Deep neural nets
Recognition alert Relay output to buzzer
Ethernet Gigabit Ethernet 10/100/1000
Wiegand output Yes
Controller compatibility Can be integrated with any standard access controller that takes Wiegand input
User interface ELID-ANPR web interface or ELID access control software
Maintenance Firmware upgrade through web interface
Power supply 12V/5A DC
Operating temperature -10°C – 60°C (14°F – 140°F)



Operation

Configuration

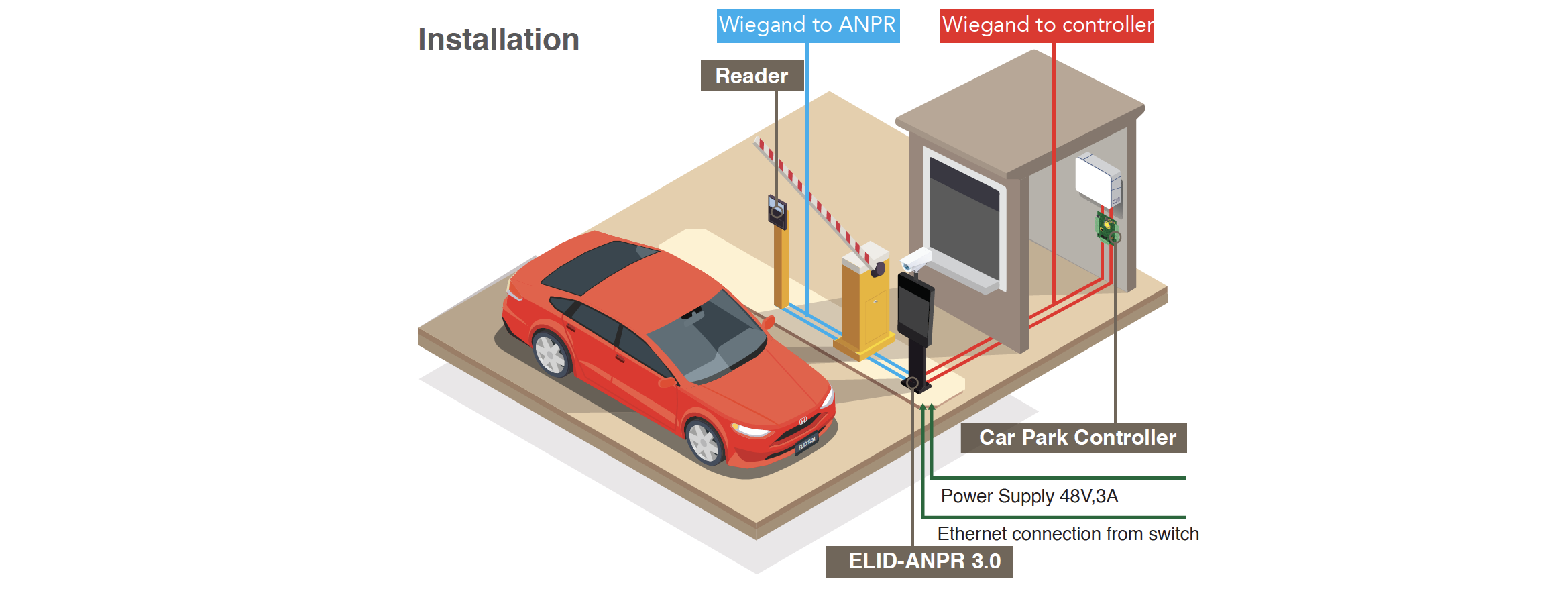

ELID-ANPR System Installation

ELID-ANPR System Configuration
